Shape Edging Machine

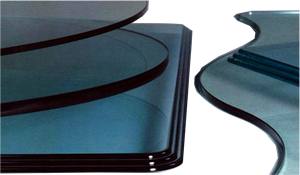

There are two types of shape edging machines. While one is just process external edging, the other one is used for either external or internal edging. Both typescan perform bevelling. Also, both machines are used round and ellipse discs to perform straight, edge, pointed edge and bevelling.
This economical machineis preferred especially by the enterprises that are producing furniture and decoration.

  • Cross glass diameter - 100-2000 mm
  • Min. Internal Depth - 0 and 100 mm
  • Bevel Angle - 0-30o
  • Max. Bevel Width - 40 mm
  • Max. Glass Thickness - 20 mm and 25 mm
  • Air Pressure - 8 Bar
  • Air Consumption - 1 l/min.
  • Total Power - 2.6 kW and 2.8 kW
  • Width - 1200 mm
  • Lenght - 1200 mm
  • Height - 1600 mm
  • Weight - 800 kg
