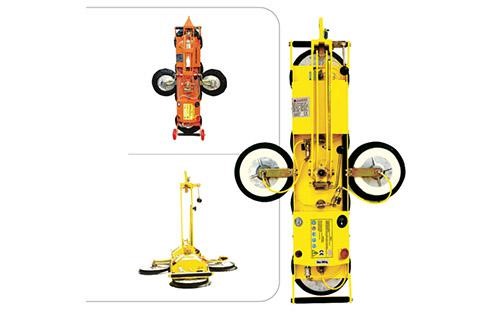

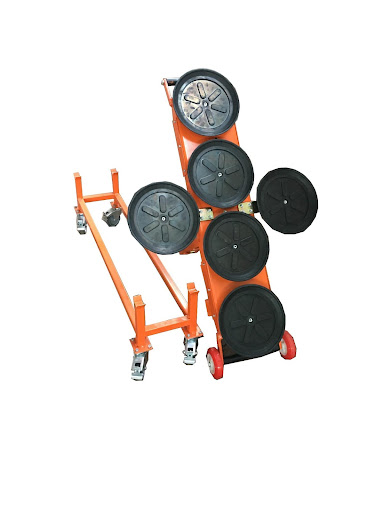

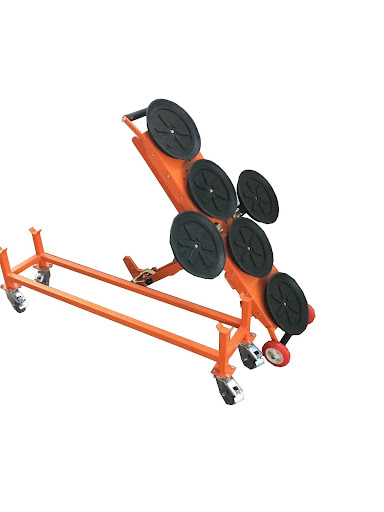

There are 6 V 300 type suction cups. 2 cups can be removed.
Safety tank and valve are available.
There is a filter system that protects the vacuum pump.
After the glass is caught, the suction cup does not leave the glass between 8 hours and 48 hours according to the cleaning and charging of the glass by the battery.
Carrying capacity is maximum 450 kg.
The electronic sensor, which automatically detects vacuum leaks, stores vacuum as much as the air escaping.
Manually, the glass can rotate 360 ° around its axis and lie 90 °.
Glass catch and release valve is available manually.
A spring lock safety pin is available for each movement.
It operates with 12 Volt battery.
System dimensions: 830 x 1320 x 190 (h) mm. d.
Glass dimensions: 850 x 1250 to 2500 x 4000 mm. between.
Machine weight: 55.3 kg.
