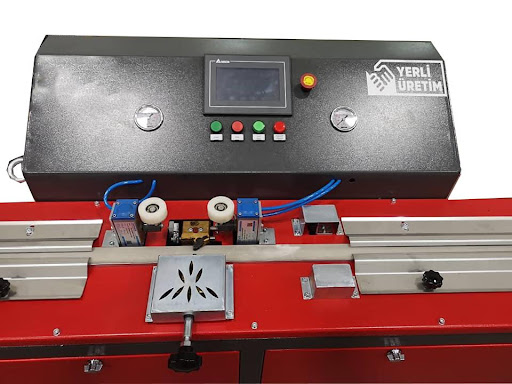

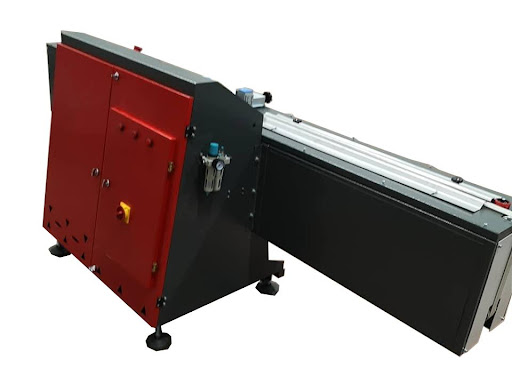

Butyl Extruder

Timer system for switching on/off
Automatic or manual control
High pressure safety system
Ability to adjust for different thickness
2 lath holding wheels at the entrance and exit
Application in different profile thicknesses
Digital display temperature controller
Separate temperature control system of the reservoir and nozzles
Setting of start and finish dependent on butylingspeed
Piston in horizontal position for easy material filling
Low temperature safety system
Adjustable working pressure and material flow
Electrostatic powder coating systems against iron oxide
Electrical system compliant with general safety rule
PLC Control System

OPTION
Intermediate lath carrier band speed can be adjusted

  • Voltage - 380V
  • Frequency - 50 Hz
  • Total Power - 5 kW
  • Air Pressure - 6 Bar
  • Air Consuption - 10 L/min.
  • Width - 700 mm
  • Lenght - 3000 mm
  • Height - 1050 mm
  • Weight - 480 kg
  • Tank Capacity - 7 kg
  • Processable Profile Lenght - 6-20 mm
  • Butyl band speed - 0-40 m/min.
