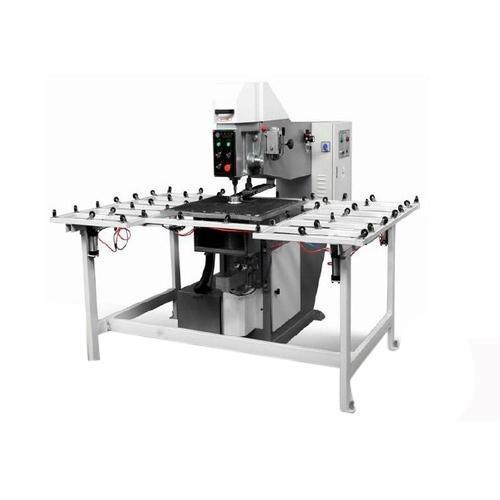

Double Head Glass Drilling Machine

This machine is designed to drill holes in glass and mirror surfaces of different thicknesses and sizes, the upper and lower sides of the machine automatically drill the glass on both sides. There is a pneumatic controlled workbench that allows the glass to be moved over the counter without scratching. There is PLC system in the machine and the maximum drilling diameter is 65 mm.

  • Distance from C - stand to the hole - 1100 mm
  • Hole diameter - 5-80 mm
  • Glass thickness - 3-19 mm
  • Air Pressure - 8 Bar
  • Air Consumption - 6 l/min.
  • Power - 2 kW
  • Width - 2.2 m
  • Lenght - 2 m
  • Height - 1.6 m
  • Weight - 600 kg
